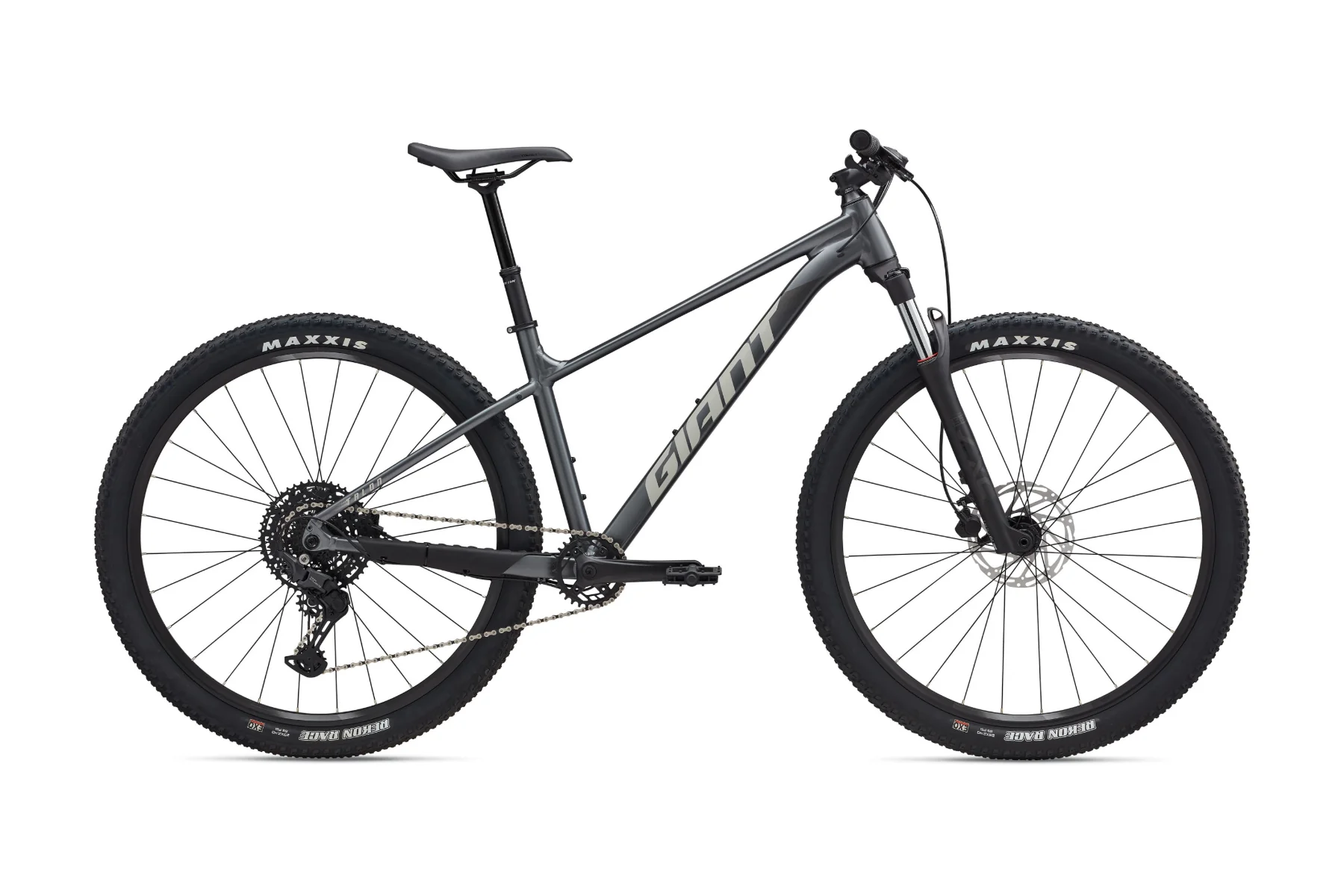

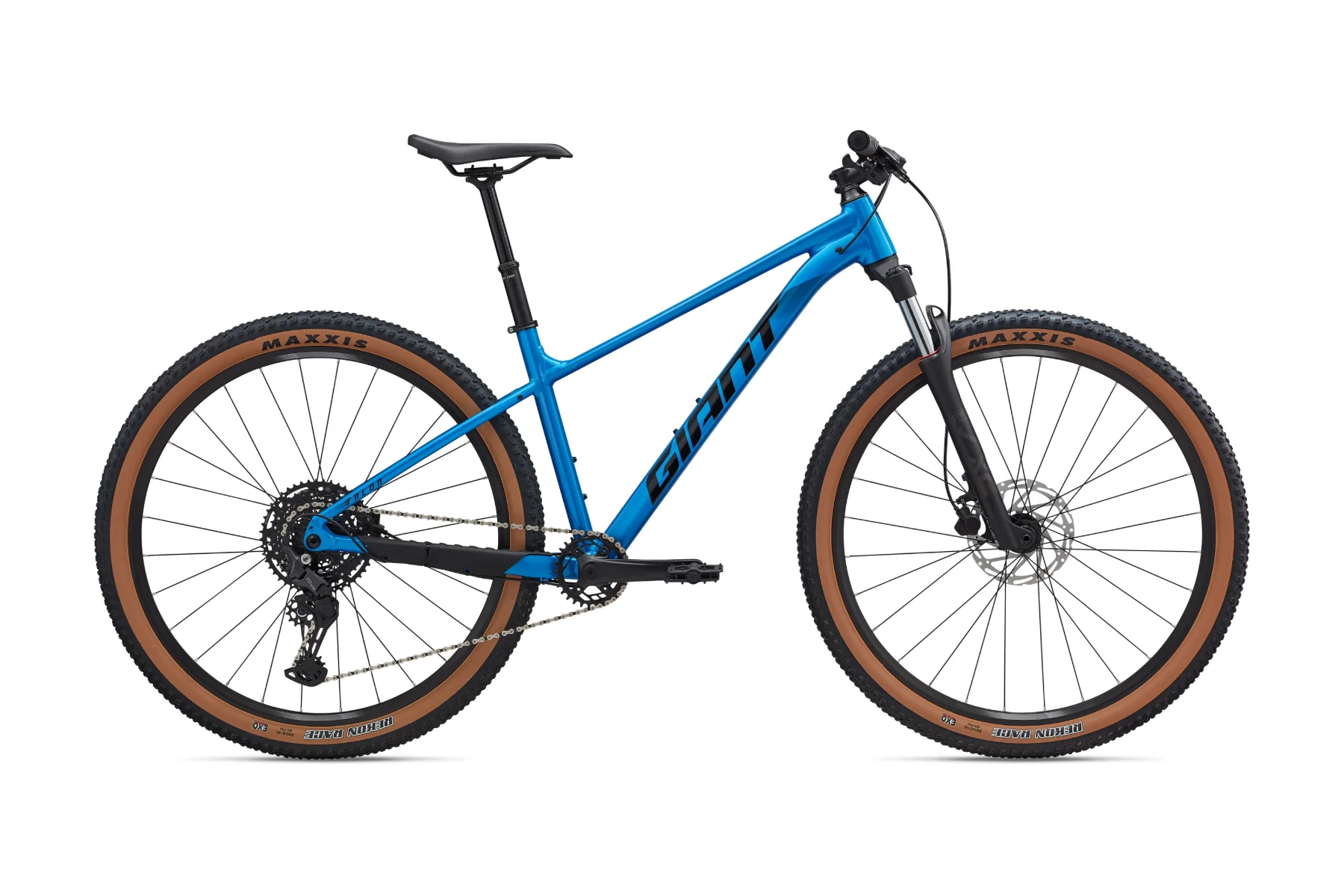

Talon 1

The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminum hardtail is everything an aspiring MTB rider needs to evolve and advance. *on select models

FEATURES:

• Modern MTB Design: Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models
• Off-Road Control: New geometry is optimized for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tires (up to 2.4-inch) for traction and grip on technical terrain.

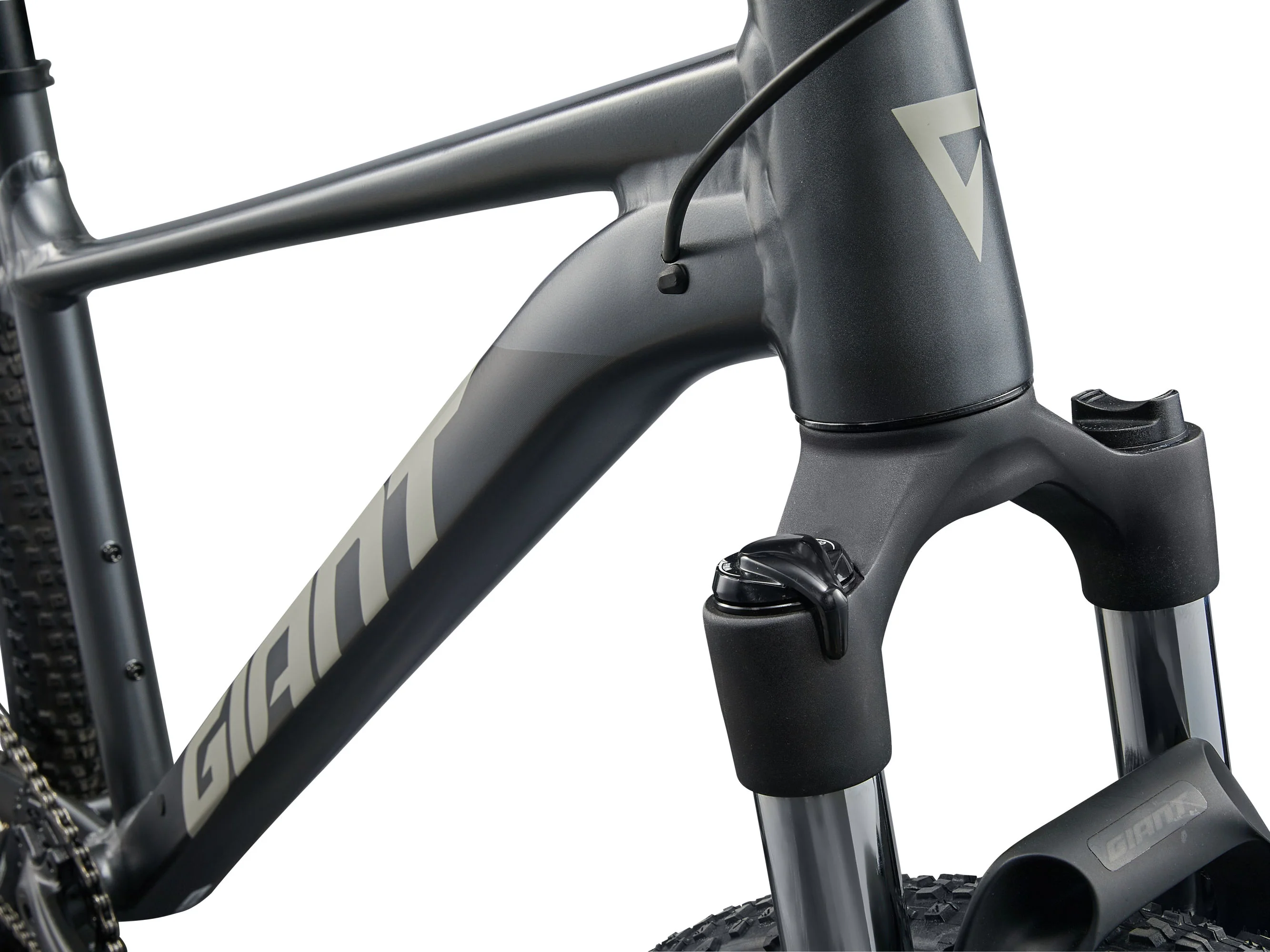

• Light and Durable: All-new ALUXX aluminum frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.

SPECS:

Frame	ALUXX-grade aluminum, disc

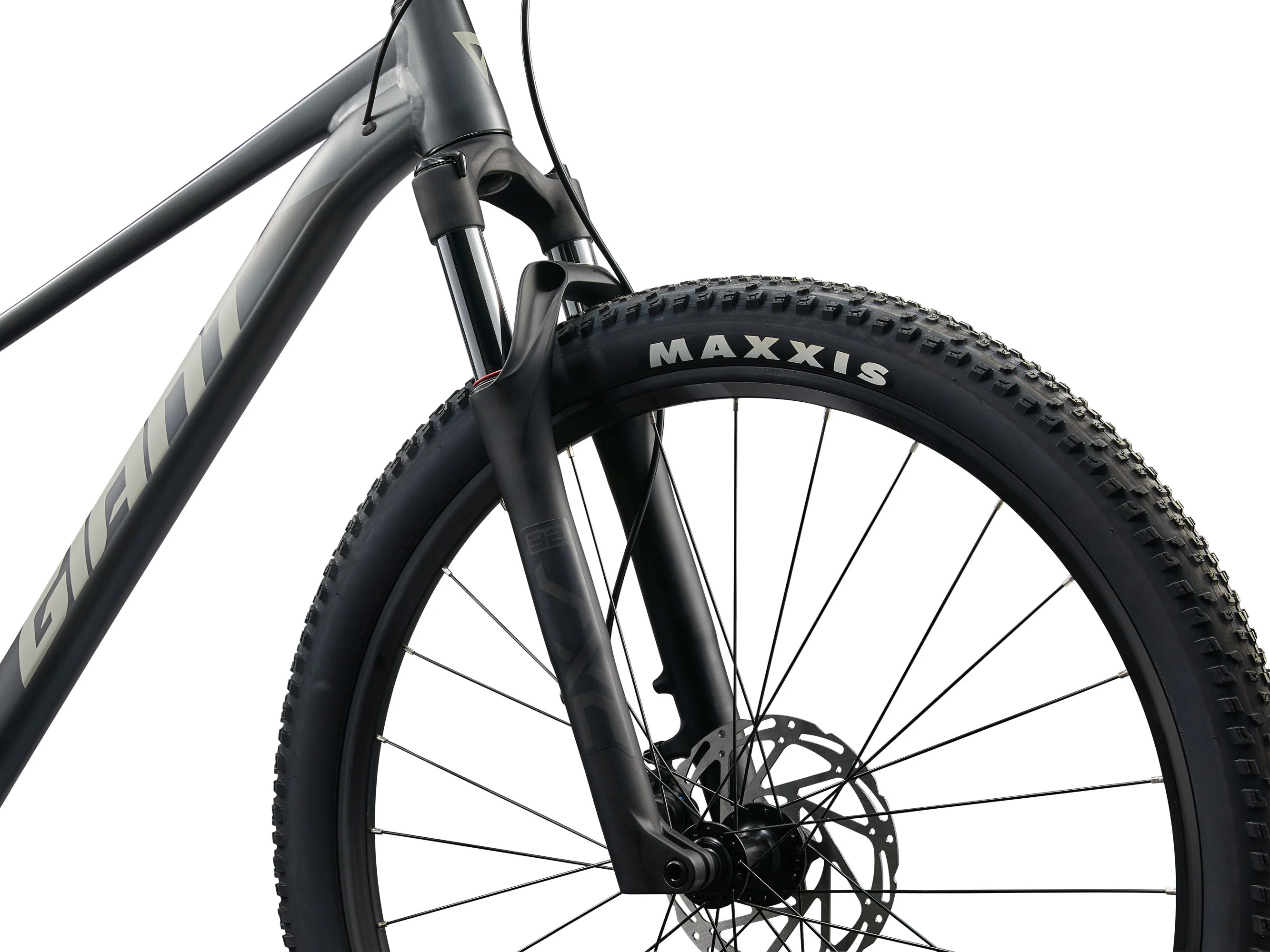

Fork	SXC32-3 RL, coil spring, thru axle, steel steerer, 15x110 XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M:100mm travel (29) L: 100mm travel (29) XL: 100mm travel (29) XXL: 100mm travel (29)
Rear Shock	N/A
Rims/Wheels	Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
Hubs	[F] Giant Tracker hub, sealed bearing, 15x110 thru axle. [R] Giant Tracker hub, 12x142 thru axle, 24-pawl drive
Spokes	stainless, 14g
Tires	Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", wire bead
Crankset	ProWheel Charm, 32t (27.5) or 30t (29) XS: 165mm (27.5) S: 165mm (27.5) / 170mm (29) M: 170mm (29) L: 170mm (29) XL: 175mm (29) XXL: 175mm (29)
Chainrings	N/A
Bottom Bracket	cartridge
Chain	KMC X-11
Front Derailleur	N/A

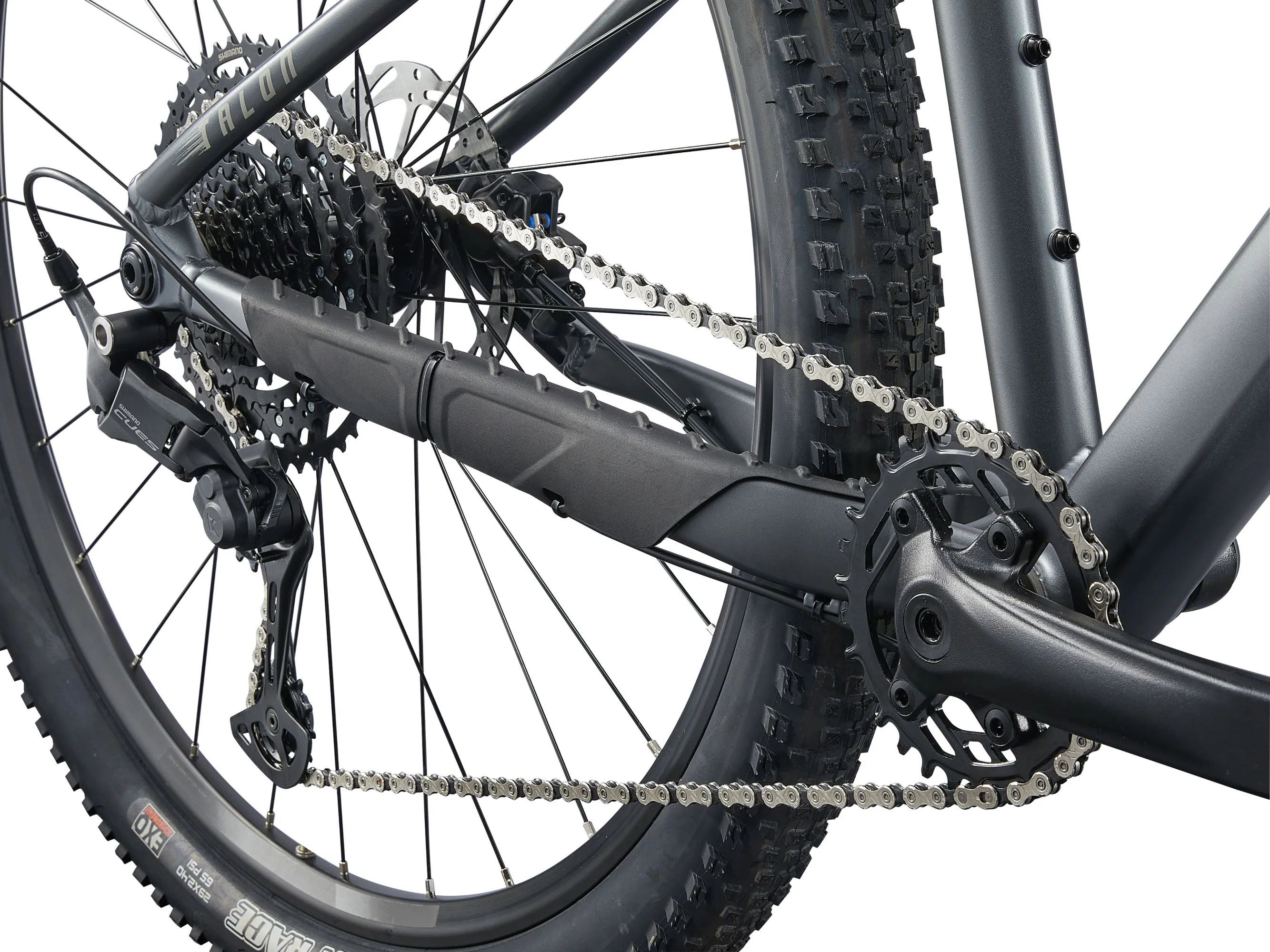

Rear Derailleur	Shimano CUES RD-U6000, clutch
Cassette/Rear Cogs	Shimano CUES, CS-LG300, 11x48
Shifters	Shimano CUES SL-6000, 1x10

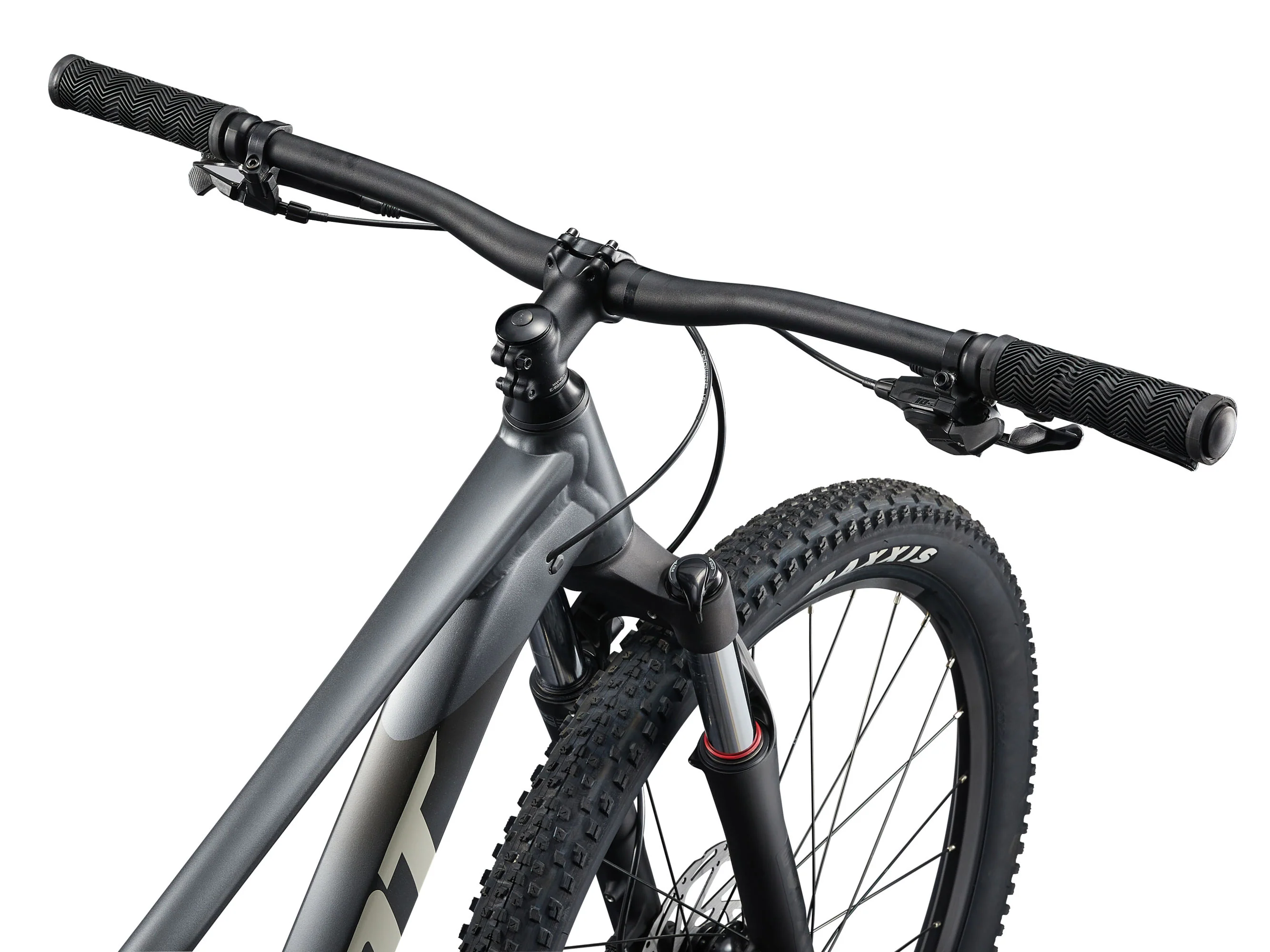

Handlebars	Giant Connect Trail, 31.8mm XS: 690mm (27.5) S: 690mm (27.5) / 750mm (29) M: 780mm (29) L: 780mm (29) XL: 780mm (29) XXL: 780mm (29)
Grips	Giant Sole-O
Stem	Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29) XXL: 90mm (29)
Brakes	Tektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm
Pedals	MTB caged
Saddle	Giant ErgoContact Trail

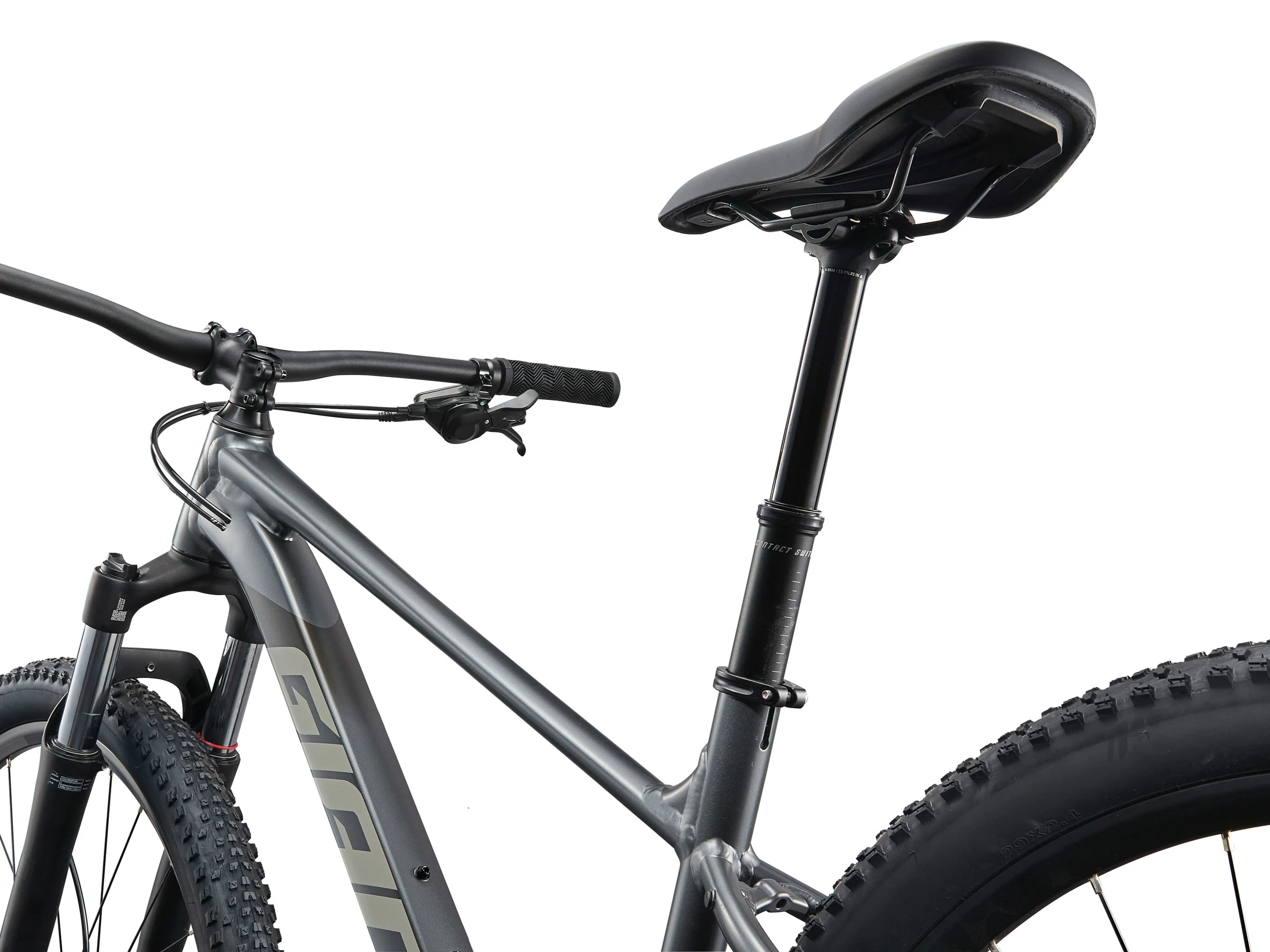

Seat Post	Giant Contact Switch Core, 30.9 XS: 100x350mm (27.5) S: 100x350mm (27.5) / 100x350mm (29) M: 120x400mm (29) L: 120x400mm (29) XL: 120x400mm (29) XXL: 120x400mm (29)
