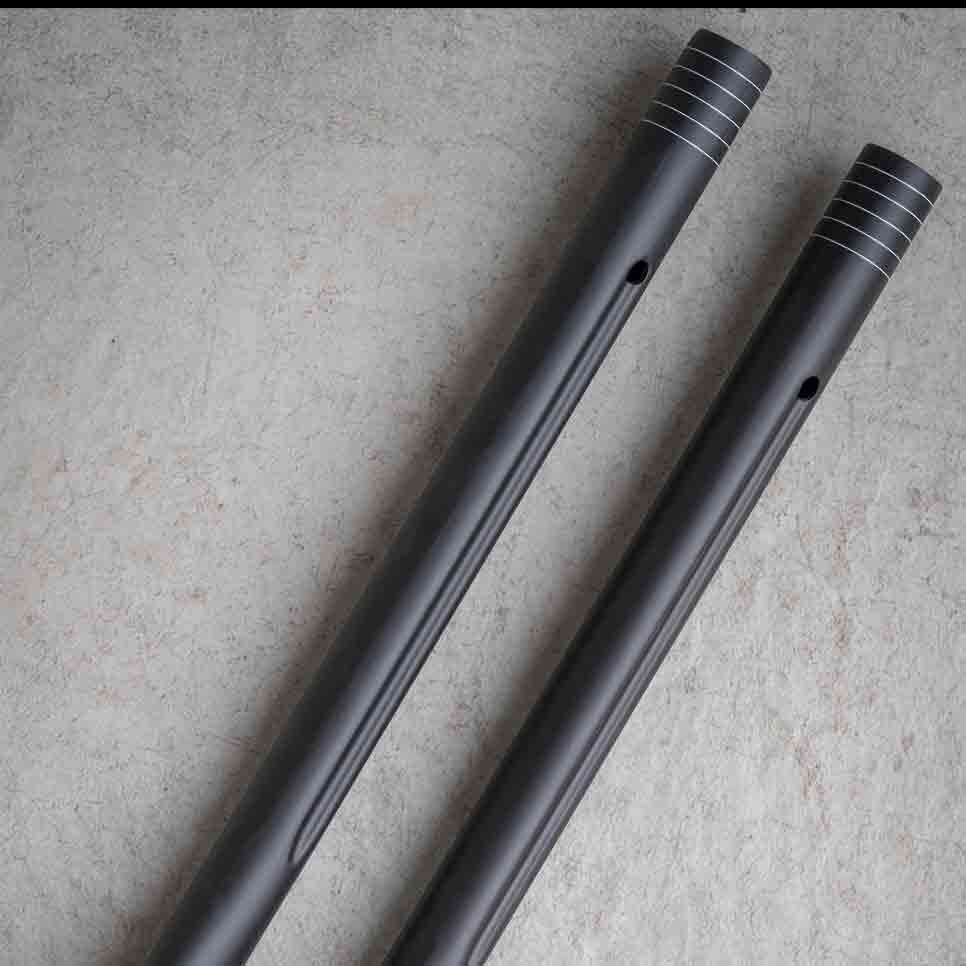

Carbon E-Handlebar

OneUP's most compliant handlebar yet and it’s equipped with integrated ports for E-Bike controls. The patented oval design delivers a more comfortable ride without giving up any steering response or strength.  That means more comfort and less fatigue on longer rides.

FEATURES:

• The patented oval profile of all our handlebars minimizes arm pump with vertical compliance and maximizes steering response with lateral stiffness.
• The OneUp Carbon E-Bar is 20% more compliant than most competitors’ bars. That’s because the oval bar profile narrows to just 20mm to maximize vertical compliance. For reference, the thinnest portion of a traditional handlebar is 22.2mm.

• The Carbon E-Bar has internal routing for Shimano STEPS switch units and Bosch LED Remote. It also passes the stringent Zedler E-MTB Advanced Plus standard and the international DH standard (ASTM Cat. 5 Downhill).

SPECS:

• Width: 800mm
• Clamp Diameter: 35mm
• RISE: 35mm
• Upsweep: 8°
• Backsweep: 5°

• Weight: 238g

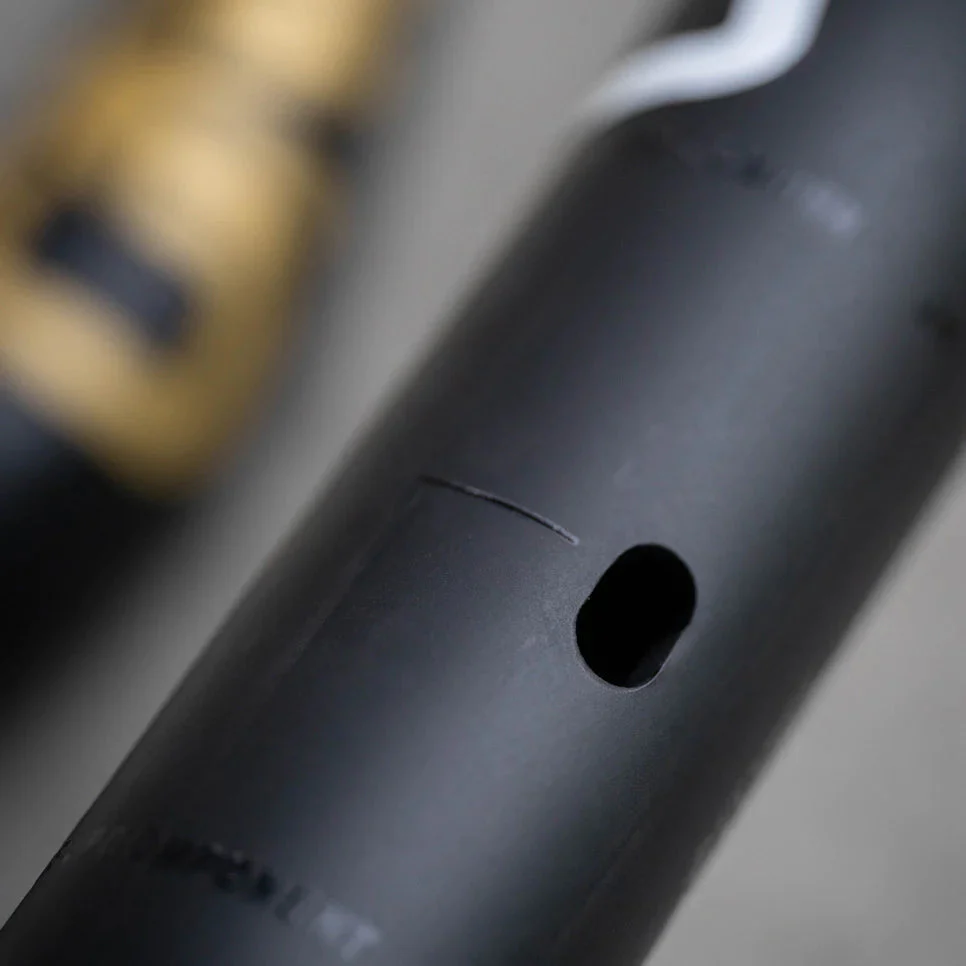

• Stealth Routing: Wire ports & grooves for controller
• Max Stem Clamp Width: 65mm
• Max Stem Clamp Torque: 6Nm
• Max Lever Clamp Torque: 5Nm
• Minimum Trim width: 740mm
