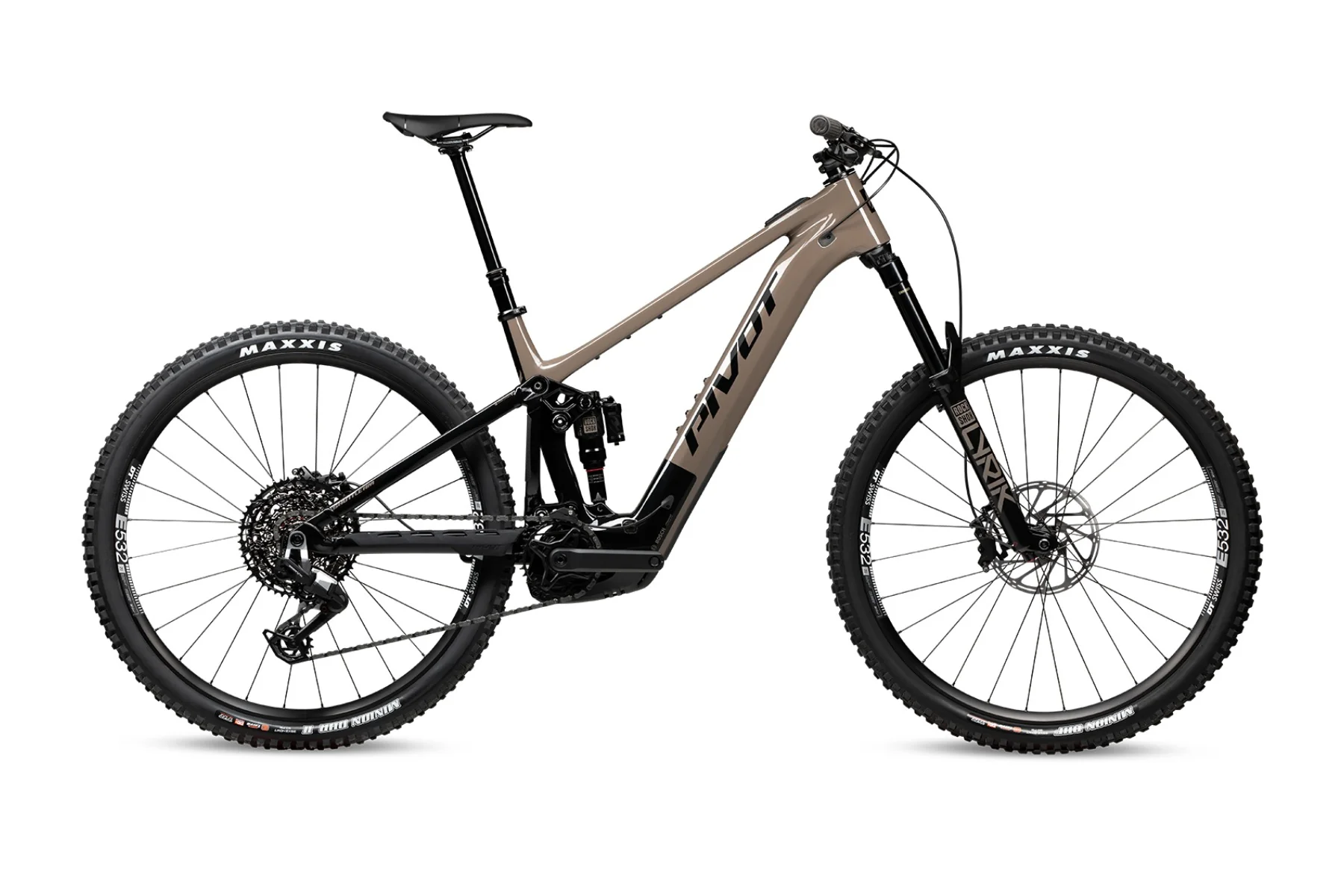

Shuttle AM 2 Ride 70/90

The next gen Shuttle AM sets a new all-mountain benchmark. Featuring Bosch’s Gen 5 Performance Line CX and CX-R drive systems, the Shuttle AM turns raw power into pure trail magic. It climbs like it’s got a vendetta against gravity and descends like it has a score to settle. Smooth, responsive, and almost telepathic, it delivers a surreal blend of torque, traction, and pure trail tenacity.

We gave the Shuttle AM a serious power upgrade, and you’ll feel it with every pedal stroke. The new Gen 5 Bosch Performance Line CX drive unit delivers up to 100Nm of torque and 750 watts of peak power, customizable through the eBike Flow app. It delivers quicker engagement, punchier acceleration, and seamless climbing across challenging terrain. The new eMTB+ mode takes things further, adapting in real time to your pedal input and trail conditions for intuitive, dialed-in support right when you need it.

FEATURES:

• Ultralight Hollow Core Carbon Frame
• Featuring Bosch's Gen 5 Performance Line CX (Ride) and CX Race Motors (Pro & Team)
• Long-range 800Wh Battery on all build levels
• Bosch 250wh PowerMore Range Extender Compatible
• Kiox 400C Display (Pro & Team)
• Wheel Mounted Speed Sensor
• Wireless Bosch Remote
• 160mm Fork
• Flip-Chip Upper Link Mount
• Mixed Wheel Compatible
• Pivot Dock Tool System Compatible
• Water Bottle Clearance on All Sizes
• 150mm of Progressive Rear Travel
• Injection Molded Rubberized Frame Protection
• Full Internal Routing with Pivot Cable Port System

SPECS:

Frame	Shuttle AM Carbon FT/Alloy RT
Fork	RockShox Lyrik Select+ 29”, 44mm offset, 160mm
Rear Shock	RockShox Super Deluxe Select
Rims/Wheels	DT Swiss E532, 30mm - 29” | F - 15x110 / R - 12x157
Hubs	N/A
Spokes	N/A
Tires	[F] Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA [R] Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA
Crankset	FSA CK-220/IS Armset 34t - 160mm
Chain	Sram Eagle 70 Flattop 12-Speed
Chain Guide	N/A
Front Derailleur	N/A
Rear Derailleur	Sram Eagle 90 Mechanical Transmission 12-Speed
Cassette/Rear Cogs	Sram XS-1270 Eagle Transmission 10-52t
Shifters	Sram Eagle 70 Mechanical Transmission 12-Speed - Single Click
Handlebars	Phoenix Race Low Rise Aluminum
Stem	Phoenix Team Enduro/Trail
Brake Levers	N/A
Brakes	Sram DB8 Stealth 4-piston
Pedals	Sold Separately
Saddle	Pivot Ride E-Bike
Seat Post	TranzX JD-YSP23GLS, 130-150mm (SM), 150-170mm (MD), 180-200mm (LG-XL)
Motor	Bosch Gen 5 Performance Line CX
Battery	800Wh
Display/Controller	Bosch System Controller w/ Mini Remote
Max Assisted Speed	20 mph
Charger	Bosch
Accessories & Extras	N/A
