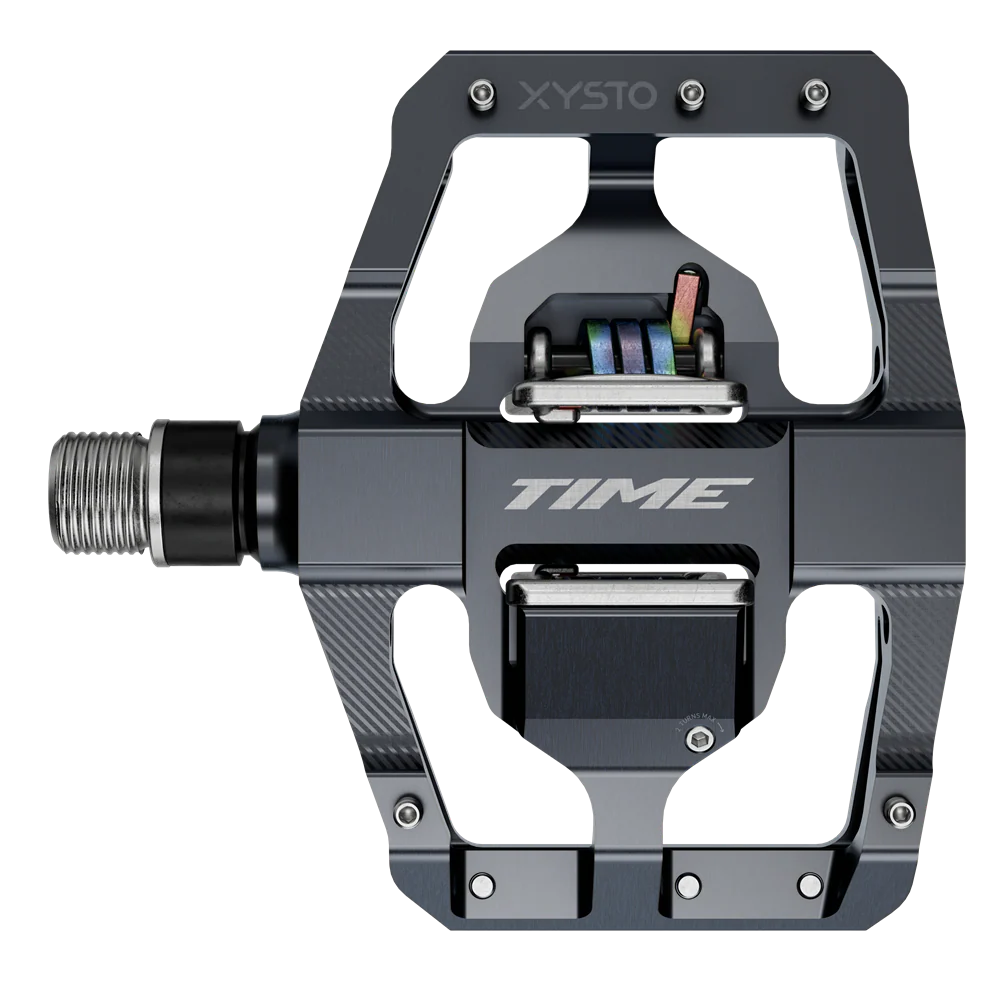

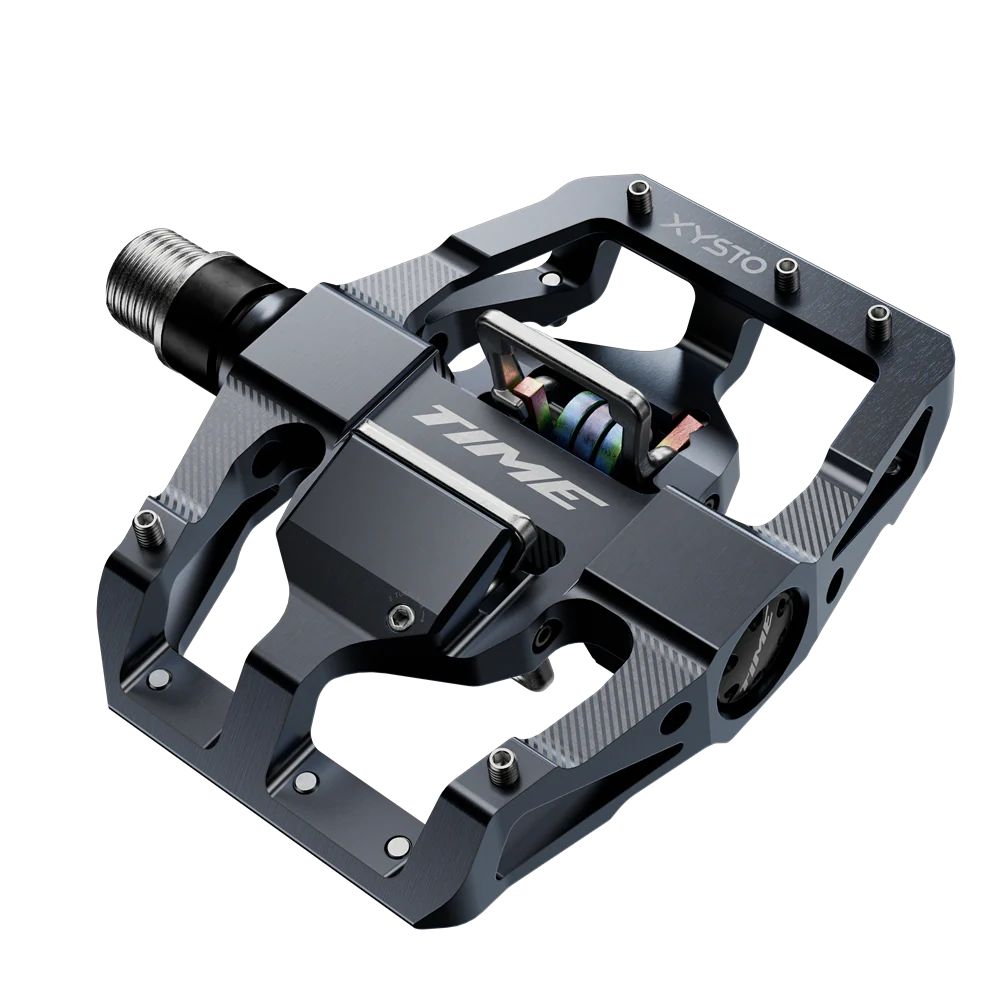

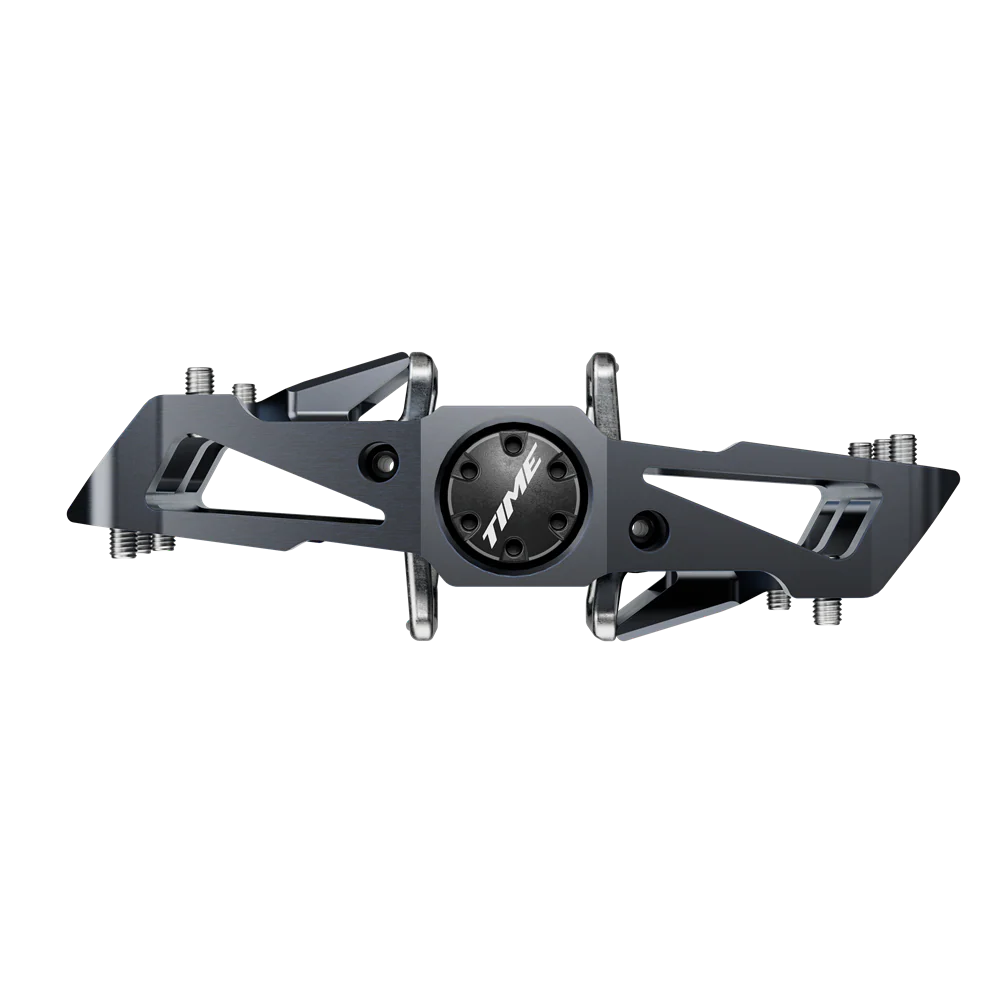

XYSTO Pedals

TIME XYSTO is a robust full-bodied pedal system for DH, Enduro, and aggressive off-road riders. The asymmetrical design fits the natural shape of your sole, with the extra-large platform providing additional support and control. TIME’s proven ATAC technology provides easy entry, retention, and mud clearance.

FEATURES:

• Extra-large 79x94mm platform provides additional support and control
• Asymmetrical design fits the natural shape of your sole
• Customizable grip pin placement
• Adjustable release tension
• ATAC design clears mud and debris every time you clip in
• Easy engagement and performance in all conditions
• Dark Grey alloy anodized platform
• 57mm spindle length
• 226g per pedal
• 13/17° cleats included with pedals
• Made in-house in Coimbra, Portugal

SPECS:

• Axle component: Steel axle

• Bearings: Steel

• Body component: 6106 T6 - Aluminum

• Cleats: ATAC cleats

• Pedal stack height: 18.3mm

• Angular freedom: 5° to -5° with free cleats, 0° with fixed cleats

• Contact surface area: n/a

• Distance pedal spindle / crank arm: 57mm

• Lateral freedom: 2.5 mm or -2.5 mm

• Release angle: 10° with ATAC Easy cleats, 13 or 17° with ATAC cleats

• Tension: Micro adjustment

• Threading: 9/16 - 20 inch

• Platform Size: X-Large (79 X 94 mm)

• Color (Pedal): Dark Grey

• Accessories: ATAC CLEATS AND 20 GRIP SCREWS

• Intended use: Gravity

• Power Measurement: Not Compatible

• Weight (per pedal): 226g
