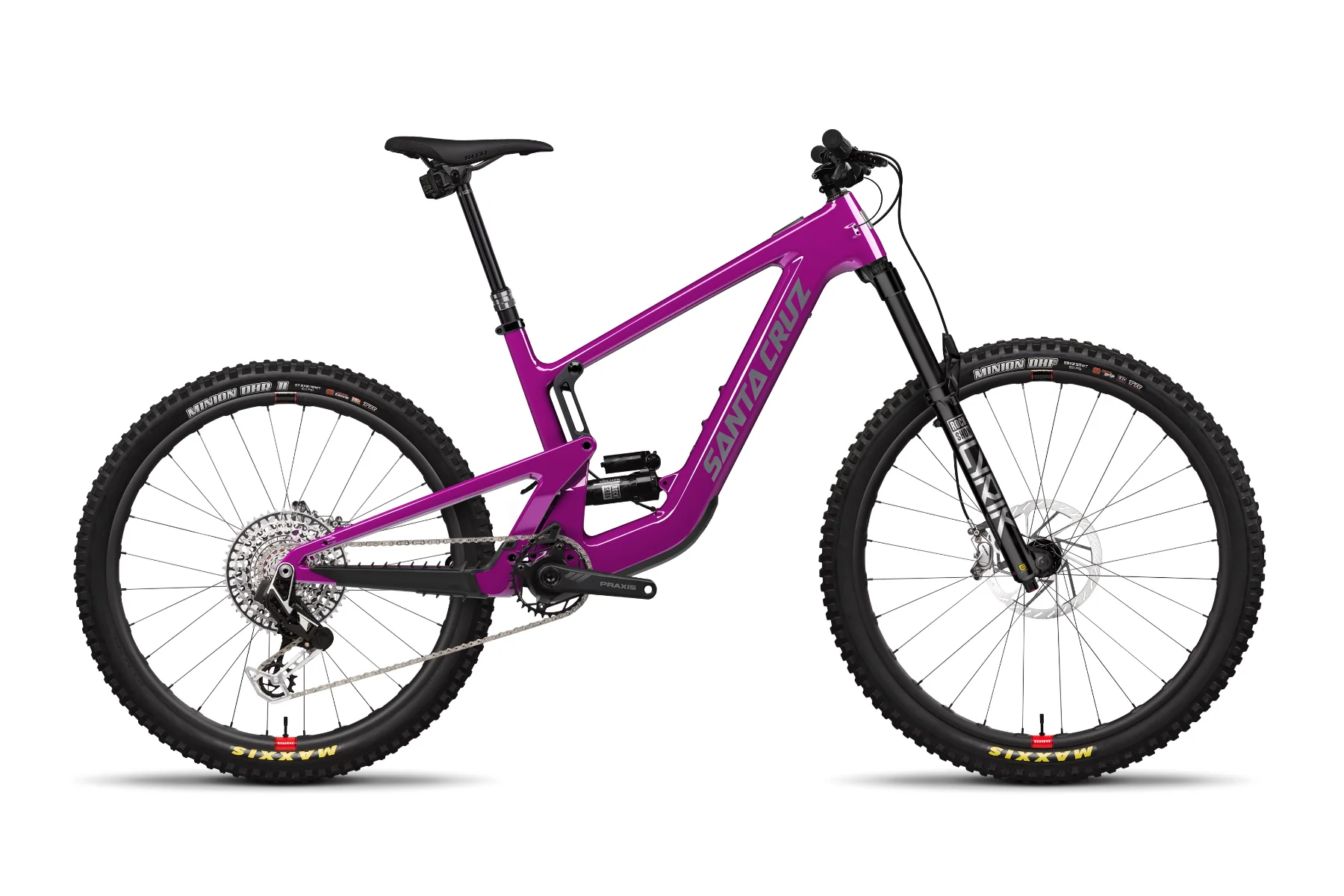

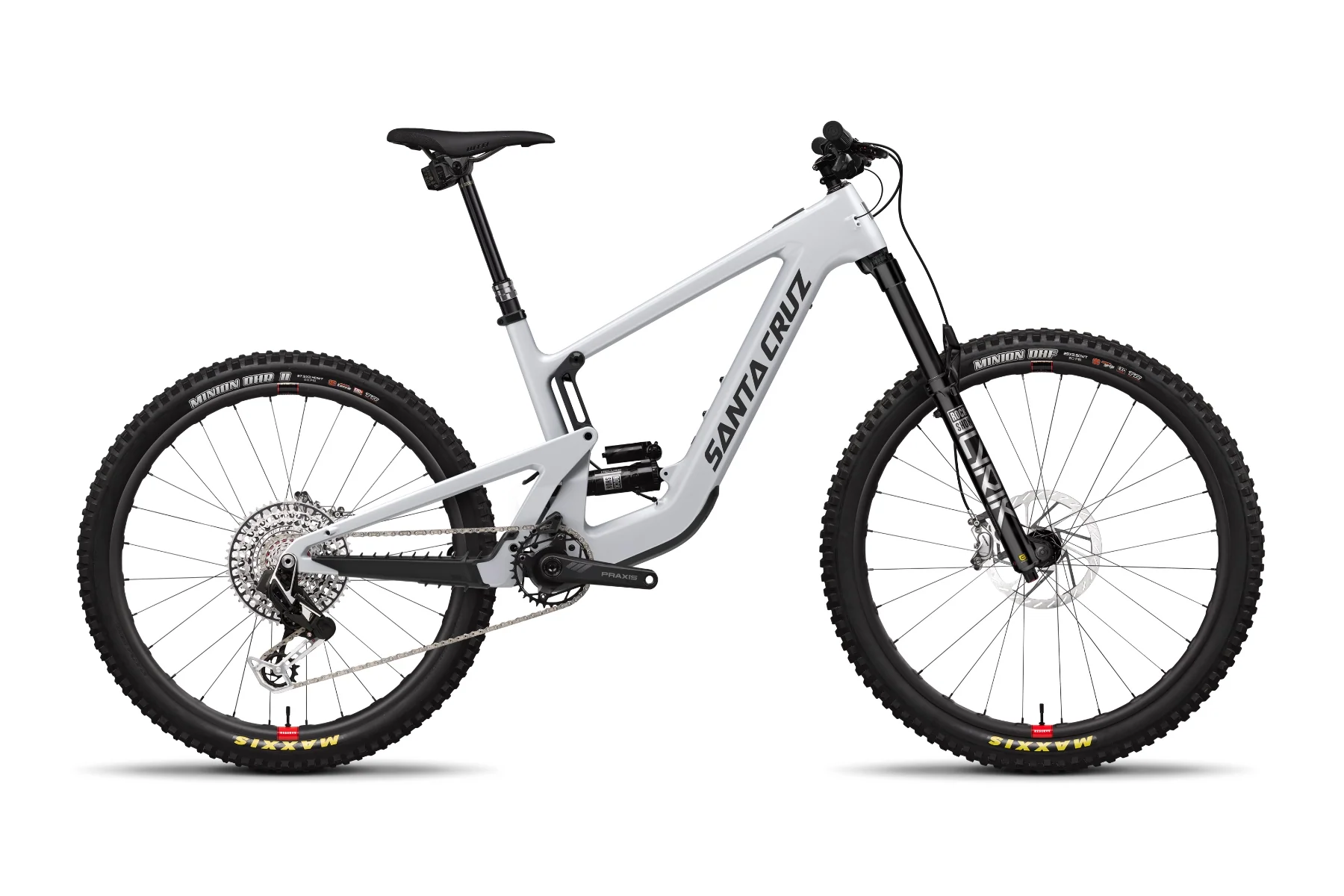

Heckler SL CC XX Transmission Reserve (2024)

Faster, lighter, or power. Why choose one when you can have all three?

All the on-trail traits of a Santa Cruz combined with the Fazua mid-power compact drive unit. 150mm of legendary VPP™ suspension, mixed-wheels, and progressive geometry make the Heckler SL a natural handling trail bike. Just with the added power of an e-bike.

FEATURES:

• More Powerful Than Other SLs: The Fazua 60 is fluid and silent and has zero drag
• Lighter, Familiar Handling: A Lightweight Drive Unit and MX wheel sizing keeps the Heckler SL feeling natural and familiar
• Impressive Range: The Fazua 430 Wh Integrated Battery is integrated and compact and shares the same ranges as a 630 wh battery on a full-powered eMTB

SPECS:

Frame	Carbon CC MX 150mm Travel VPP™
Fork	RockShox Lyrik Ultimate, 160mm
Rear Shock	RockShox Super Deluxe Ultimate, 210x55
Rims/Wheels	Reserve 30|HD 29"/27.5"
Hubs	Industry Nine Hydra, Torque Cap, XD 6-Bolt,
Spokes	N/A
Tires	(F) Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO (R) Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+
Crankset	Praxis eTor AL, 104BCD, 165mm
Chain	SRAM XX Eagle T-Type, Flattop, 12spd
Chain Guide	OneUp Chainguide
Rear Derailleur	SRAM XX Eagle AXS T-Type, 12spd
Cassette/Rear Cogs	SRAM XX Eagle T-Type, 10-52t
Shifters	SRAM AXS Pod Ultimate Bridge
Handlebars	Santa Cruz e35 Carbon Bar, 800mm
Stem	Burgtec Enduro MK3 Machined, 42mm
Brake Levers	Code Ultimate Stealth
Brakes	Code Ultimate Stealth w/ SRAM HS2 200mm Rotors
Pedals	Sold Separately
Saddle	WTB Silverado Medium, Ti
Seat Post	RockShox Reverb AXS, 31.6
Motor	Fazua Ride60 60 Nm
Battery	Fazua 430 Wh Integrated Battery
Display/Controller	Fazua Toptube Integrated Display w/ Fazua Ring Controller
Max Assisted Speed	20mph (Class 1)
Charger	N/A
Accessories & Extras	N/A
Weight	41lbs
